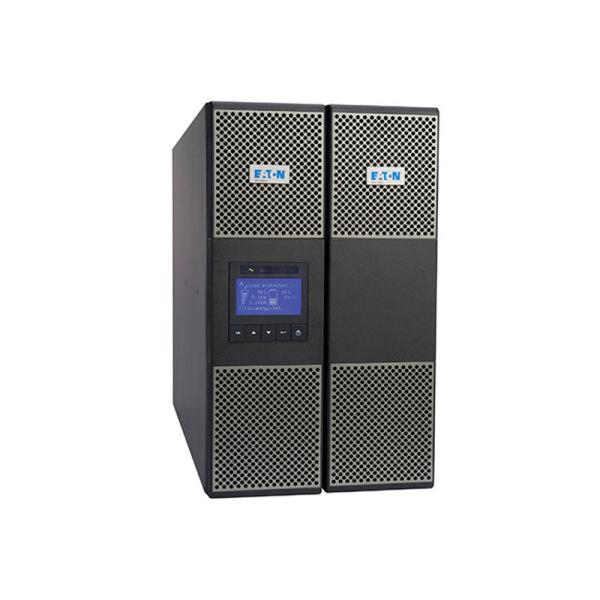

9PX1000iRT2U Eaton 9PX UPS 1000VA / 1000W 2U 98% Efficiency

Name: 9PX1000iRT2U Eaton 9PX UPS 1000VA 1000W 2U 98 Efficiency
Brand: Eaton
Price: 1 USD

Brand Name : Eaton

Model Number : Eaton 9PX UPS

Certification : CE

Place of Origin : China

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/months

Delivery Time : 60days

Packaging Details : cartons

Product name : Eaton 9PX UPS

Power level : 1 kVA - 11 kVA

Form Factor : Rack/Tower

Technology : Online UPS

Rated frequency : 50-60 Hz

Input Voltage : 200/208/220/230/240V

Output Voltage : 200/208/220/230/240V

Efficiency : 98%

Short circuit current : 90A/120A

Overload capacity : 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 900ms

Battery management : ABM® and temperature compensated charging method (user selectable), automatic battery test, deep discharge protection

Communication Ports : 1 USB port + 1 RS232 serial port and relay contacts

Communication Slot : 1 slot for Network-MS board (standard in Netpack version), ModBus-MS or Relay-MS board.

Operating temeprature : 0 ~ 40°C

Noise level : <50db

Safety : IEC/EN 62040-1, UL 1778（1:1）

EMC, Performance : IEC/EN 62040 -2, FCC Class A（1:1），IEC/EN 62040-3

Approvals : CE / CB（TUV）/ UL（1:1）

Contact Now

Eaton 9PX UPS 1000VA/1000W 2U 9PX1000iRT2U

PRODUCT FEATURES EATON 9PX 1KVA DOUBLE-CONVERSION (ONLINE) 1000 W 8 AC OUTLET(S)

9PX 1000W RT2U (tower/rack 2U)

PRODUCTS DESCRIPTION EATON 9PX1000IRT2U

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Features
UPS topology:	Double-conversion (Online)
Output power capacity:	1 kVA
Output power:	1000 W
Waveform:	Pure sine
Input operation voltage (min):	176 V
Input operation voltage (max):	276 V
Input frequency:	40/70 Hz
Output operation voltage (min):	200 V
Output operation voltage (max):	240 V
Output frequency:	50/60 Hz
Number of input phases:	1
Efficiency:	91.5%
Power factor:	1
Noise level:	35 dB
Power protection features:	Battery discharge
Ports & interfaces
AC outlet types:	C13 coupler
Power plug:	C14 coupler
AC outlets quantity:	8 AC outlet(s)
USB port:
USB 2.0 ports quantity:	1
Serial interface:
Serial interface type:	RS-232
RS-232 ports:	1
Battery
Battery technology:	Sealed Lead Acid (VRLA)
Typical backup time at full load:	6 min
Typical backup time at half load:	16.5 min
Hot-swap battery:
Automatic battery test:
Design
Form factor:	Rackmount/Tower
Product colour:	Black
Rack capacity:	2U
Display type:	LCD
LED indicators:
Safety:	IEC/EN 62040-1, UL 1778, CSA 22.2
Certification:	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Technical details
Sustainability certificates:	ENERGY STAR
Weight & dimensions
Width:	440 mm
Depth:	450 mm
Height:	86.5 mm
Weight:	17.4 kg
Packaging data
Rack mount kit:
Management card included:
Bundled software:	Intelligent Power Software suite
Logistics data
Harmonized System (HS) code:	85078000
Other features
Nominal input voltage:	230 V
